1-1/2 in. All-Pur™ FDA (F Series) Pump

Part no. F150-TAE-TT3T-S70

1-1/2 in. All-Pur™ FDA (F Series) PumpF150



AIR INLET
  • 3/4" FNPT
LIQUID INLET
  • 2"
LIQUID DISCHARGE
  • 2"
CONNECTION TYPE
  • Tri-Clamp®
MAX SUCTION LIFT CAPABILITY
  • 22 ft-H2O (6.7 m-H2O) Dry
  • 31 ft-H2O (9.4 m-H2O) Wet
MAX FLOW RATE
  • 115 gpm (435 lpm)
MAX PRESSURE
  • 120 psi (8.2 bar)
MAX DIAMETER SOLIDS
  • 1/4" (6.4 mm)








Specifications


Specifications

PHYSICAL SPECIFICATIONS
Liquid Port Size: 2 in.
Liquid Connection Size: Tri-Clamp
Standard Suction Port: Right
Standard Discharge Port: Right
Air Inlet Connection Size: 3/4 in.
Air Exhaust Connection Size: 1-1/4 in.
Weight: 72 lbs (33 kg)



CONSTRUCTION
Wet End: Passivated Stainless Steel
Air End: Aluminum, Stainless Steel
Diaphragm: Hytrel®, PTFE, Santoprene®
Valve: Buna-N, PTFE Santoprene®
Seat: Stainless Steel
O-Rings: Buna-N, EPDM, PTFE
Hardware: Stainless Steel
Muffler: Metal, Plastic


Performance

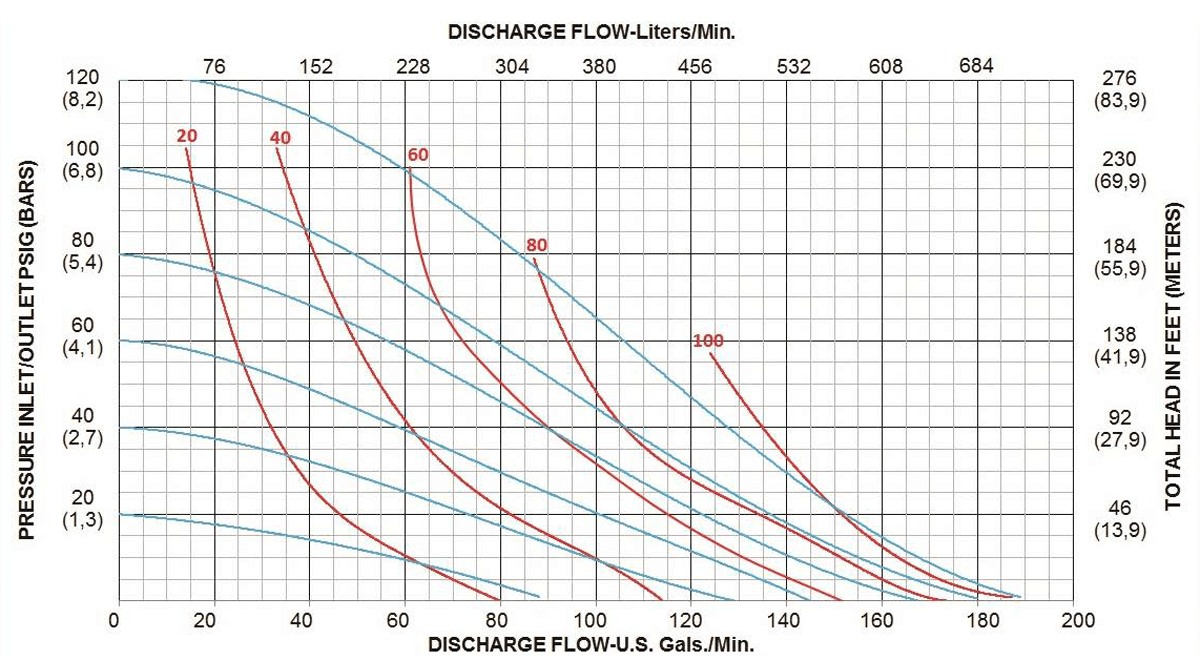

Performance Curve

F-Series-Performance-Curves_F200_Metal_Rubber

Note: Additional performance curves can be found in the download section.

PERFORMANCE
Max Flow: 115 gpm (435 lpm)
Max Air Pressure: 120 psi (8.2 bar)
Suction Lift (Dry): 22 ft-H2O (6.7 m-H2O)
Suction Lift (Wet): 31 ft-H2O (9.4 m-H2O)
Max Solids: 1/4 in. (6.4 mm)
