1 in. Max-Pass® (S Series) Metal

Part no. S100-NA3-SN3N-B70

1 in. Max-Pass® (S Series) MetalS100

AIR INLET
  • 1/2" FNPT
LIQUID INLET
  • 1"
LIQUID DISCHARGE
  • 1"
CONNECTION TYPE
  • FNPT/FBSPT (Threaded)
MAX SUCTION LIFT CAPABILITY
  • 18 ft-H2O (5.5 m-H2O) Dry
  • 27.5 ft-H2O (8.4 m-H2O) Wet
MAX FLOW RATE
  • 46 gpm (174 lpm)
MAX PRESSURE
  • 120 psi (8.2 bar)
MAX DIAMETER SOLIDS
  • 3/4" (19 mm)










Specifications


Specifications

PHYSICAL SPECIFICATIONS
Liquid Port Size: 1 in.
Liquid Connection Types: FNPT, FBSPP
Standard Suction Port: Center Front
Standard Discharge: Center Rear
Air Inlet Connection Size: 1/2 in.
Weight: 18 lbs (8 kg)
CONSTRUCTION
Wet End: Aluminum, Stainless Steel
Air End: Glass Filled Polypropylene
Diaphragm: Geolast®, PTFE with Santoprene® Backup, Santoprene®, FKM
Valve: Buna-N, EPDM, FKM
Seat: Aluminum, Stainless Steel
O-Rings: Buna-N, EPDM, PTFE, FKM
Hardware: Stainless Steel
Muffler: Metal, Plastic

Performance

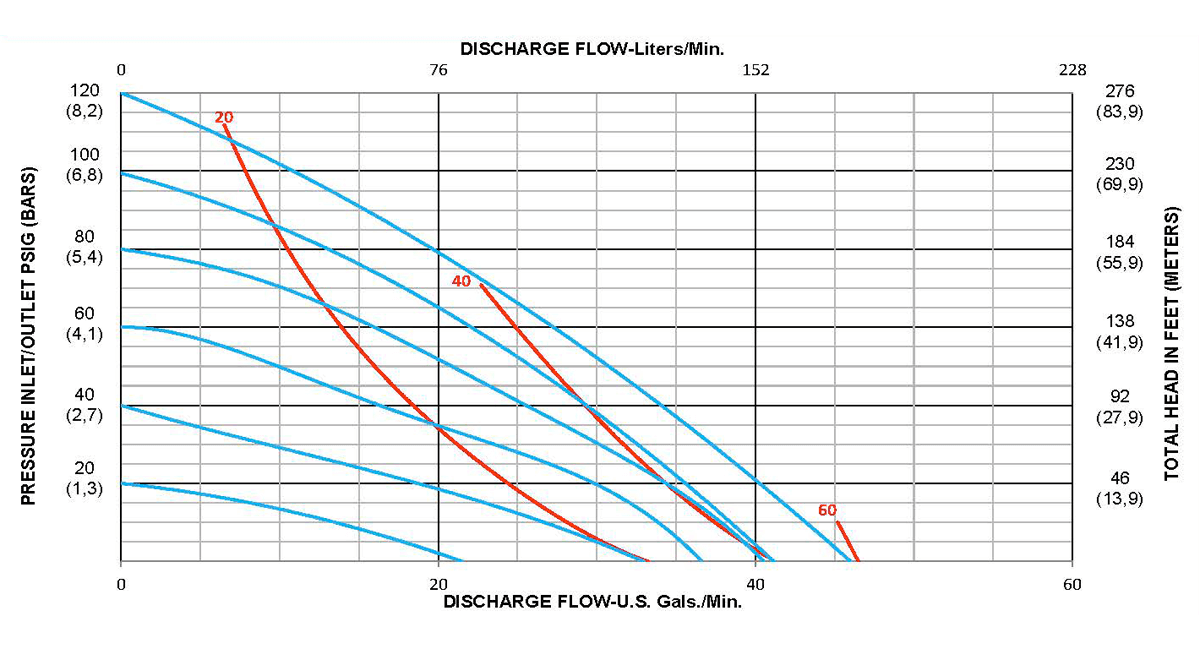

Performance Curve

S-Series-Performance-Curves_S100_Metal_Rubber
PERFORMANCE
Max Flow: 46 gpm (174 lpm)
Max Air Pressure: 120 psi (8.2 bar)
Suction Lift (Dry): 18 ft-H2O (5.5 m-H2O)
Suction Lift (Wet): 27.5 ft-H2O (8.4 m-H2O)
Max Solids: 3/4 in. (19 mm)
